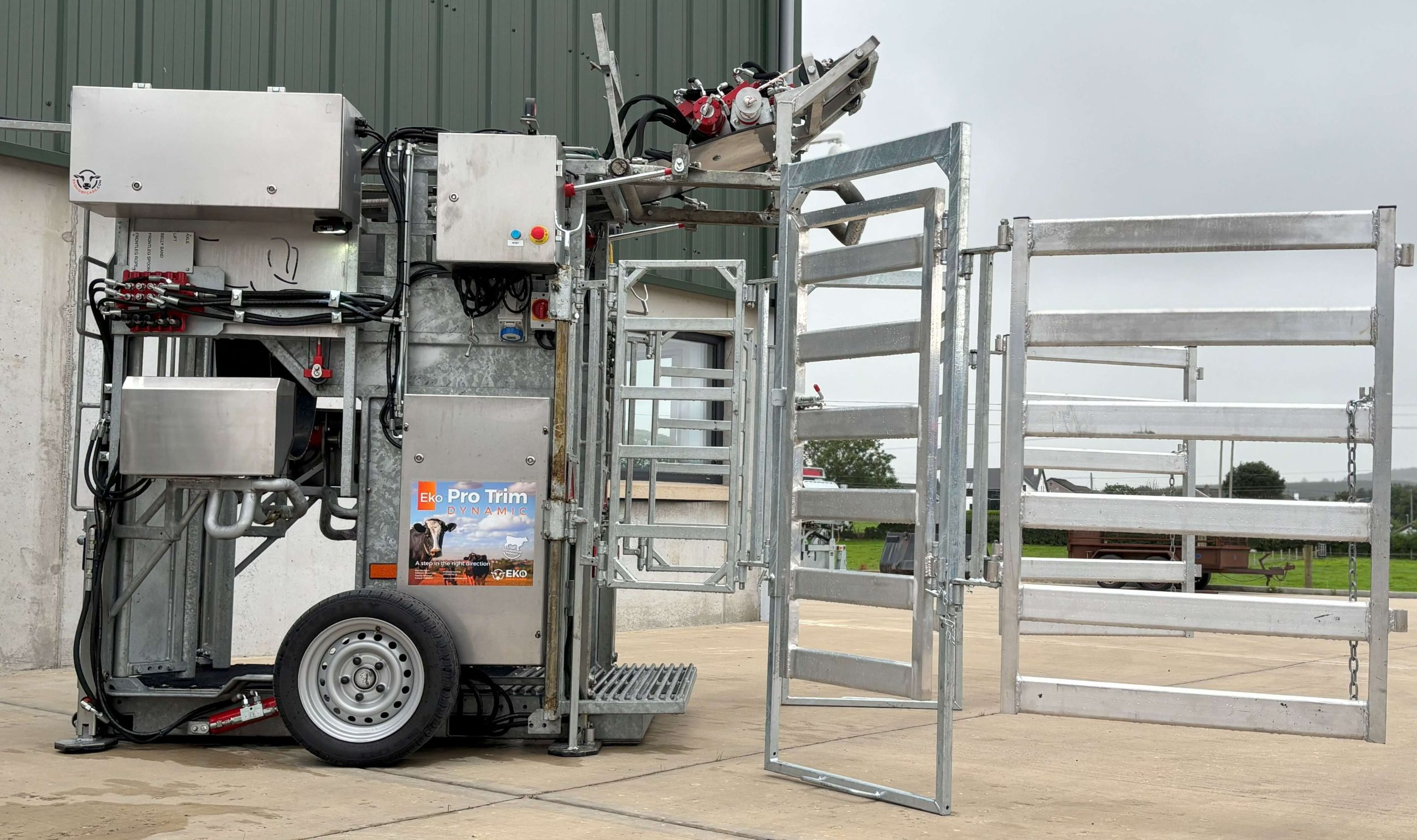

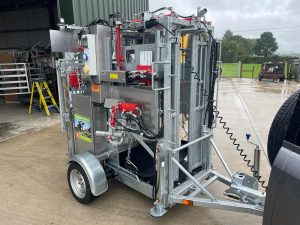

Ten Napel Pro Trim Dynamic
Our hoof trimming crushes are tailor-made according to your wishes and requests.
The Pro Trim Contractor Unit boasts all the features of the Pro Trim Standard, but with a much larger hydraulic system, to cater for more extras, more power, speed and comfort for the user.
Ergonomic hoof trimming crush for professionals.
There are also over 30 optional extras available for the Pro Trim Contractor crush. Speak to our sales team today for more information.
Features and Specifications
Frame made of high quality steel (1.0038 / S235JR) fully welded, completely galvanized and all corners are reinforced. Aluminum plate floor with rubber Dunlopmat. Standard extra wide rebar floor rating on aft side of the frame.
Suitable for all cattle, cows and bulls. The animal can move through the crush without any obstacles guaranteed.
Inside dimensions:
- Length: 180 cm
- Width: 74 cm
- Height: 170 cm
- Weight: depending on options.

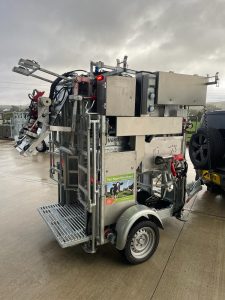

Completely flat floor as wheel axle is fully integrated under the floor.
- Heavy WAP axle, 1500 kg load capacity (1800kg, heavy duty optional).
- Tyres 195/50R13
- Simple connection of towbar by means of Ten_Napel_Quickmount© system
- Optional heavy WAP disc braked axle
Equipped with adjustable, solid “Texas” doors, mounted on heavy duty hinges. Operated hydraulically. The cow will automatically lock her head whilst entering the crush.
Hydraulically operated “Solid Backbar”.
Two hydraulic cylinders are used to operate. Lower part is spring loaded for optimal guiding of back leg. All axles mounted in bearings with easy access grease points.
4 Fences standard 900 mm high (2 x Left + 2 x Right). Complete with securing chain
All hydraulics and electrics placed in high quality Stainless Steel (AISI316L) boxes.
All hydraulic speeds can be adjusted by the user (slow down).
Hydraulically operated belly band with durable rubber band 18 cm. (1400 kg lifting force)
Hydraulically operated back leg lift with animal friendly band or aluminum hook, guided by nylon rollers and completely adjustable.
Both belly band and back leg hook are attached to a long-life steel chain.
hook are attached to a long-life steel chain. ·
Locking pins to prevent box from moving along the ground while in work position

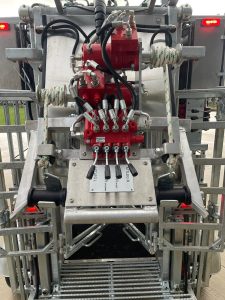

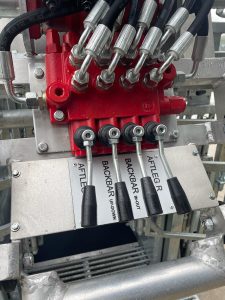

Hydraulics Bosch Rexroth ( electric) or Walvoil valves ( manual)
230V or 400V power supply
Tool holders on both sides of the box
Spray can holders on both sides of the box
Electric or mechanical (manual) hydraulic operation is available
1 emergency stop

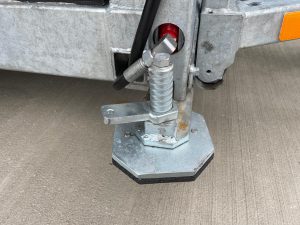

Heavy support rear leg
Optional hydraulic lift system for adjusting working height, load capacity 3800 kg

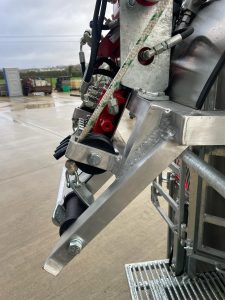

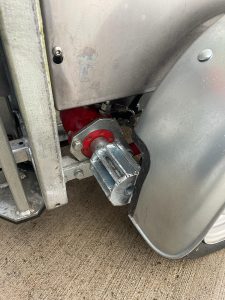

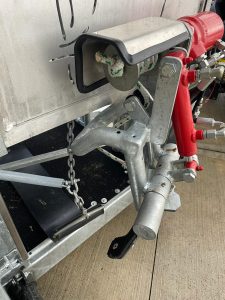

Front leg system with hydro motors.

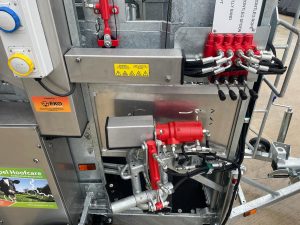

Large capacity Bosch pump
For 400V: electronic security and reversing relay for changing motor direction
For 230V: electronic motor protection and frequency converter
Stainless hydraulics and motor casing
Aluminum switchboards
Stainless motor pump tank
Mechanical counter
Oil level and temperature indicator
24Vdc operation system
230V operating with strong invertor (motor operated at 400V)
24Vdc LED work lights
2 x 3 socket box for power tools (IP66)
Dynamic Leg Systems also available.
