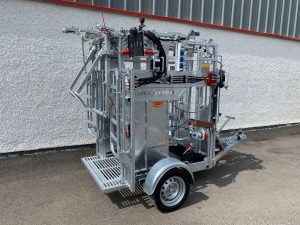

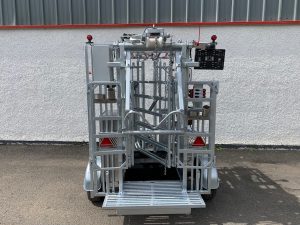

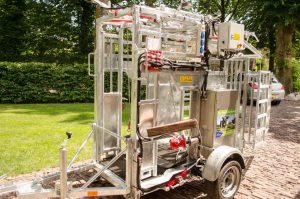

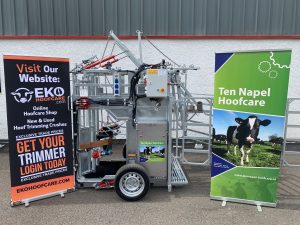

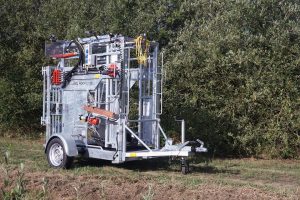

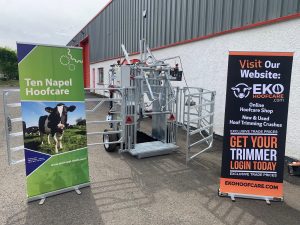

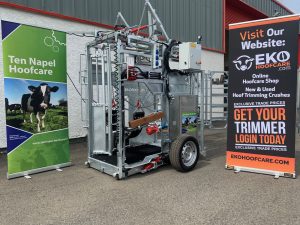

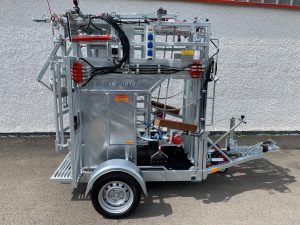

Ten Napel Pro Trim Standard

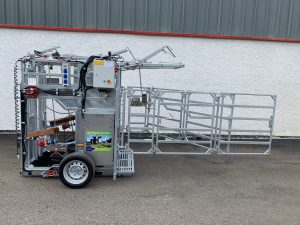

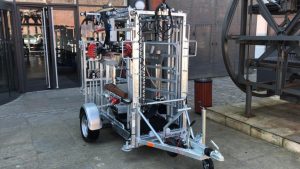

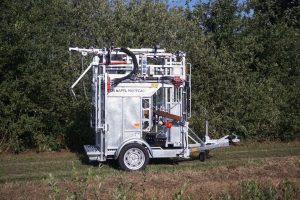

This is a compact and versatile hoof trimming crush, loaded with unique features to improve operating experience. Some of the features of this unit include:

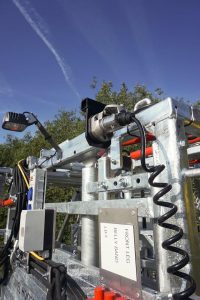

Fully hydraulic back leg, belly band, head gate and front leg systems
Hydraulic accumulator for extra power

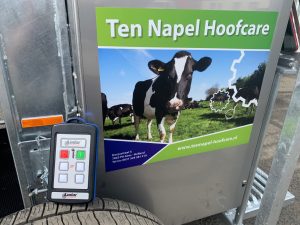

Optional multi functional remote control

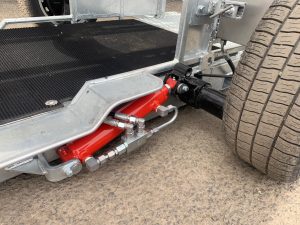

Under floor axle for clear walkthrough

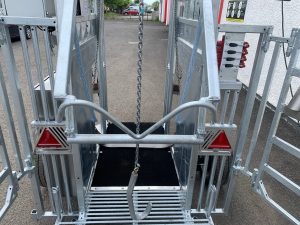

Rear W Bar leg fixation as standard

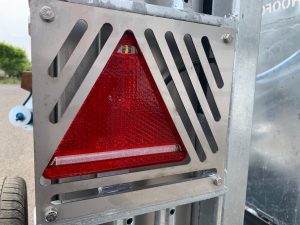

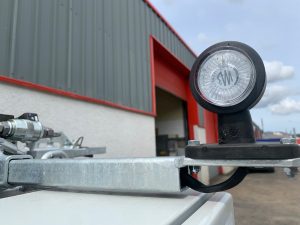

LED worklights and road lights
High quality stainless steel enclosures

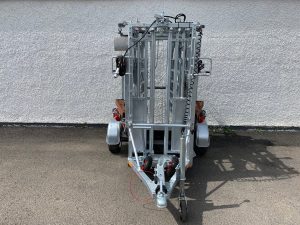

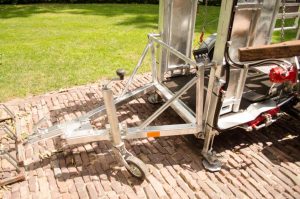

Optional heavy duty 1800kg drum braking axle and easy connection and removal of drawbar by Ten Napel Quickmount © system

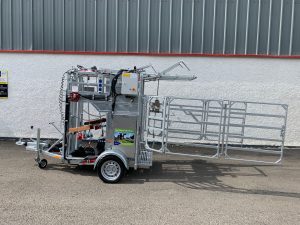

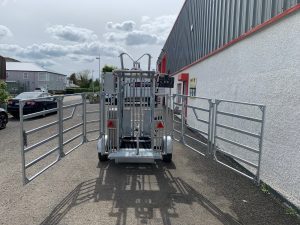

Lead in gates that stow inside the unit
Speak to us today for more information or to arrange a viewing of one of these machines
Features and Specifications
Frame made of high quality steel (1.0038 / S235JR)
Fully welded, complete galvanized and all corners reinforced. Aluminum plate floor with rubber (Dunlomat) cover. Standard extra wide rebar grating floor at rear.
Equipped with adjustable, solid “Texas” door,
Equipped with adjustable, solid “Texas” door, mounted in heavy duty hinges. Operated hydraulically. The cow will lock her head automatically upon entry.

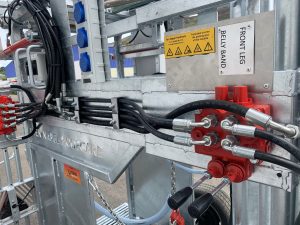

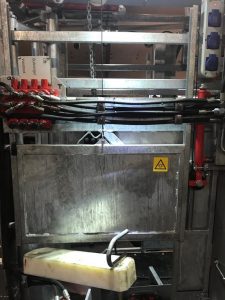

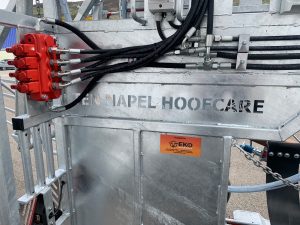

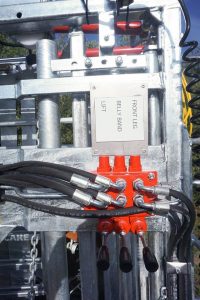

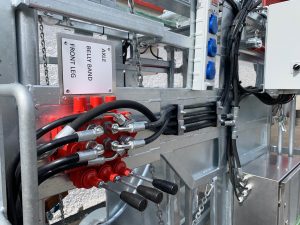

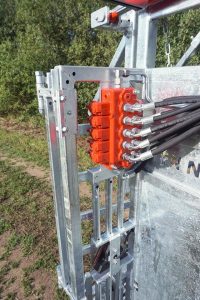

All hydraulics housed in high quality Stainless Steel (AISI316L) boxes.

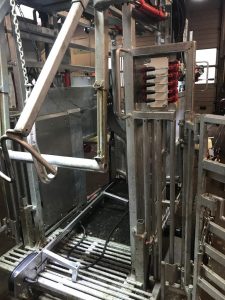

Hydraulically operated “Solid Backbar”.
Lower part is spring loaded for optimal guiding of back leg.
Hydraulically operated belly band
with durable rubber band 18 cm. (1400 kg lifting force)
Hydraulically operated back leg lift
with aluminium hook, guided by nylon rollers and completely adjustable.
Both belly band and back leg hook are attached to a long-life steel chain.

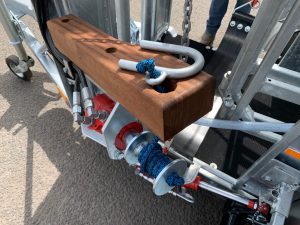

Hydraulically operated front leg support, with wood or nylon support blocks
Locking pins to prevent box from moving when in the operatin position.
230V power supply (400V optional)
Tool holders on both sides of the box
Spray can holders on both sides of the box
24Vdc operation system

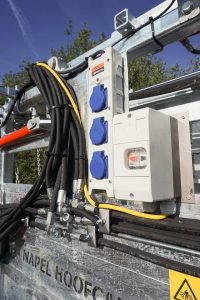

2 x 3 socket box for power tools (IP66)

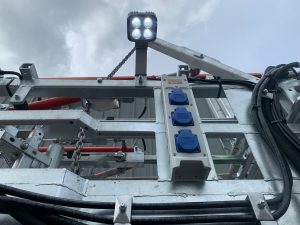

LED worklights
